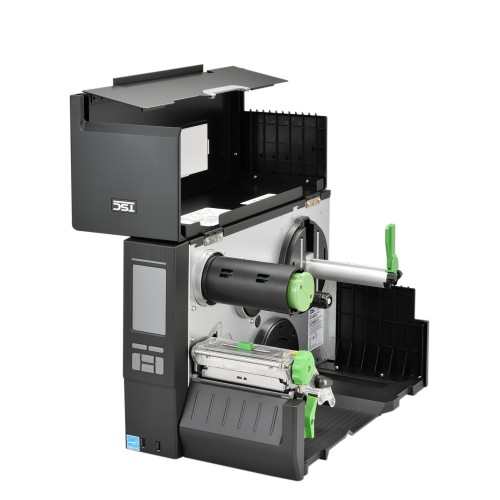

Key Specifications: TSC MH641T Industrial Barcode Label PrinterThe TSC MH641T is a 4-inch thermal transfer printer from TSC's MH series, featuring ultra-high 600 dpi resolution for printing small 2D barcodes and fine details in demanding industrial applications like healthcare, manufacturing, warehousing, and logistics. Below is a summary of its primary specifications:

Category	Specification
Print Method	Thermal transfer and direct thermal
Resolution	600 dpi (24 dots/mm)
Print Speed	Up to 6.15 inches per second (ips) or 156 mm/sec
Print Width	4.09 inches (104 mm)
Maximum Label Width	4.5 inches (114.3 mm)
Maximum Label Length	63 inches (1600 mm)
Media Roll Diameter	Up to 8 inches (203.2 mm) OD; 5 inches (127 mm) standard
Media Core Diameter	3 inches (76.2 mm)
Ribbon Specs	Width: up to 4.5 inches (114.3 mm); Length: 1968 feet (600 m); Core: 3 inches (76.2 mm)
Display	4.3-inch color touch LCD (480 x 272 pixels)
Memory	256 MB DRAM / 512 MB Flash
Interfaces	USB 2.0, RS-232 serial, Ethernet, USB host, Bluetooth 5.0; Wi-Fi ready (optional 802.11 a/b/g/n/ac)
Sensors	Adjustable media near-end sensor; supports top/bottom black mark and gap sensing
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Key Features	Tool-free printhead and platen replacement; TPH Care mechanism for real-time printhead monitoring; supports remote management via SOTI Connect and TSC Console; emulations for TSPL-EZ, EPL, ZPL, ZPL II, DPL; real-time clock

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

TSC MH641T Label Printer (Industrial) 600 dpi

Product Code: TSC MH-641T
Availability: In Stock

₹174,640.00
Ex Tax: ₹148,000.00

Qty

0 reviews / Write a review
