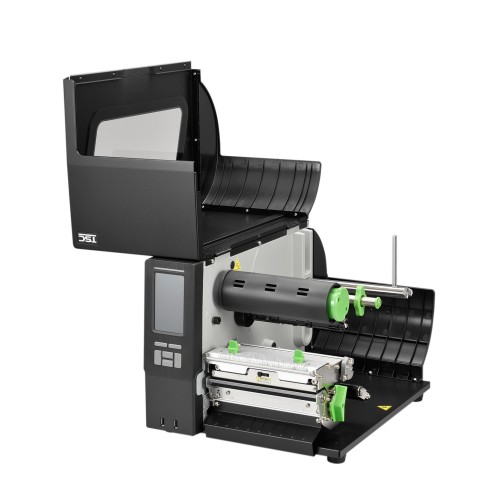

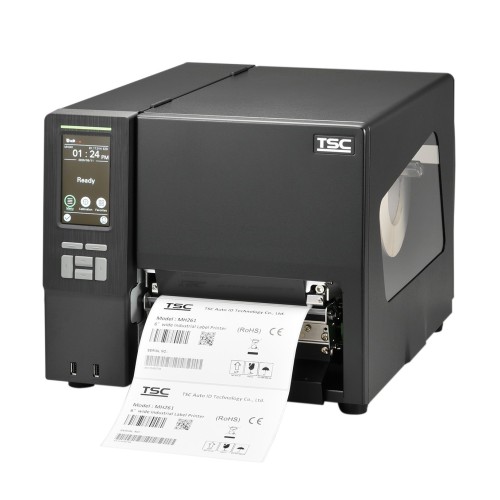

Key Specifications: TSC MH261T Industrial Barcode Label Printer (203 dpi)The TSC MH261T is a 6-inch thermal transfer printer from TSC's MH series, designed for mid-level industrial applications such as manufacturing, logistics, and healthcare labeling. It builds on the MH240 series with enhanced features for durability and efficiency. Below is a summary of its primary specifications:

Category	Specification
Print Method	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 12 inches per second (ips) or 305 mm/sec
Print Width	6.61 inches (168 mm)
Maximum Label Width	6.8 inches (172.7 mm)
Maximum Label Length	63 inches (1600 mm)
Display	4.3-inch color touch LCD (480 x 272 pixels)
Memory	256 MB DRAM / 512 MB Flash
Processor	32-bit RISC CPU
Interfaces	USB 2.0, RS-232 serial, Ethernet, Parallel, USB host, GPIO; Wi-Fi ready (optional 802.11 a/b/g/n/ac with Bluetooth 4.2)
Sensors	Adjustable media near-end sensor; gap, black mark, and reflective sensors
Ribbon Specs	Width: up to 6.8 inches (172.7 mm); Length: 1968 feet (600 m); Core: 3 inches (76.2 mm)
Media Specs	Roll diameter: up to 8 inches (203 mm); Core: 3 inches (76.2 mm)
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Key Features	Tool-free printhead and platen replacement; TPH Care mechanism for printhead monitoring; supports remote management via SOTI Connect and TSC Console; emulations for TSPL-EZ, EPL, ZPL, ZPL II, DPL; robust aluminum die-cast housing

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

TSC MH261T Label Printer (Industrial) 203dpi

Product Code: TSC MH-261T
Availability: In Stock

₹169,920.00
Ex Tax: ₹144,000.00
